Product Description

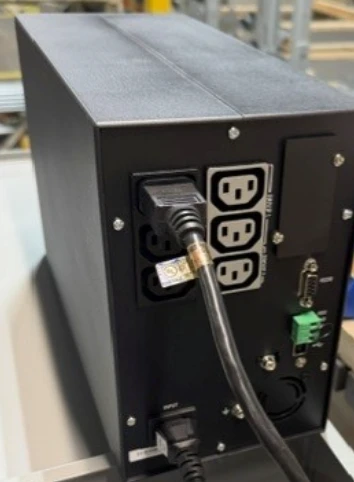

Eaton 5P850G UPS Backup Power SupplyUPS Backup Power Supply for Symmetry Residential Elevators (Post-October 2023 Models)
Product Description
Ensure reliable backup power and continuous operation for your Symmetry Residential Elevator with the Eaton 5P850G Uninterruptible Power Supply (UPS). Designed for all Symmetry Residential Elevators manufactured after October 2023, this advanced UPS provides clean, true sine wave power protection during outages, voltage fluctuations, and power disturbances.
The Eaton 5P850G delivers 850VA / 600W of backup power and features industry-leading battery management technology that extends battery life by up to 50% while providing early warning when replacement is needed. Its line-interactive design automatically regulates incoming voltage to protect sensitive elevator electronics and maintain system performance.
A user-friendly LCD display provides real-time status monitoring, while USB and RS-232 connectivity allow for enhanced system communication and diagnostics. The compact tower design makes installation simple in residential environments, operating quietly at less than 45 dB.
Whether replacing an existing unit or stocking a spare, the Eaton 5P850G is the approved UPS solution for Symmetry Residential Elevators built after October 2023.
Key Features
- Compatible with all Symmetry Residential Elevators manufactured after October 2023
- 850VA / 600W backup power capacity
- True sine wave output for sensitive elevator electronics
- Eaton ABM® battery management technology extends battery life up to 50%
- User-replaceable sealed lead-acid battery
- Automatic voltage regulation protects against power fluctuations
- LCD graphical display for easy monitoring
- USB and RS-232 communication ports included
- Quiet operation (<45 dB)
- High-efficiency design (up to 97%)
- Compact tower form factor
Specifications
- Manufacturer: Eaton
- Model: 5P850G
- Capacity: 850VA / 600W
- Input Connection: C14
- Output Receptacles: (6) IEC C13
- Output Voltage: 230V
- Output Waveform: True Sine Wave
- Battery Type: Sealed Lead Acid (User Replaceable)
- Dimensions: 13.6" D × 5.9" W × 9.1" H
- Weight: 22.8 lbs
