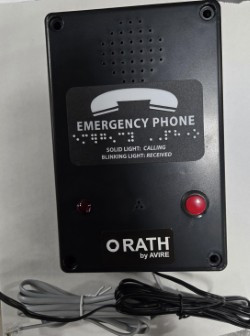

Product Description
Code Compliance:
- Meets all ADA, ASME A17, and B44 codes for elevator emergency phones
- Phone Line Detection Compliant (2.27.1.1.6):
- Phone is field programmable to check for an active phone line every 5 minutes up to 23 hours. If an active line is not detected, it will activate the Alarm Relay on the phone board
- Conforms to UL Standard 2017 for Attendant Monitored Signaling Devices
- Complies with Section 6.4 of UL 60950-1
- ETL Listing Number: 5013373
Power Requirements:
- Requires an analog (POTS, PBX, or central office phone line), digital, or IP phone line.
- If used on an IP system, you must purchase a Interface Device. If you have one from the IP provider, program it with a standard WINK or disconnect signal per FCC and CRTC requirements
- Designed for 120vac or 24vac/vdc power

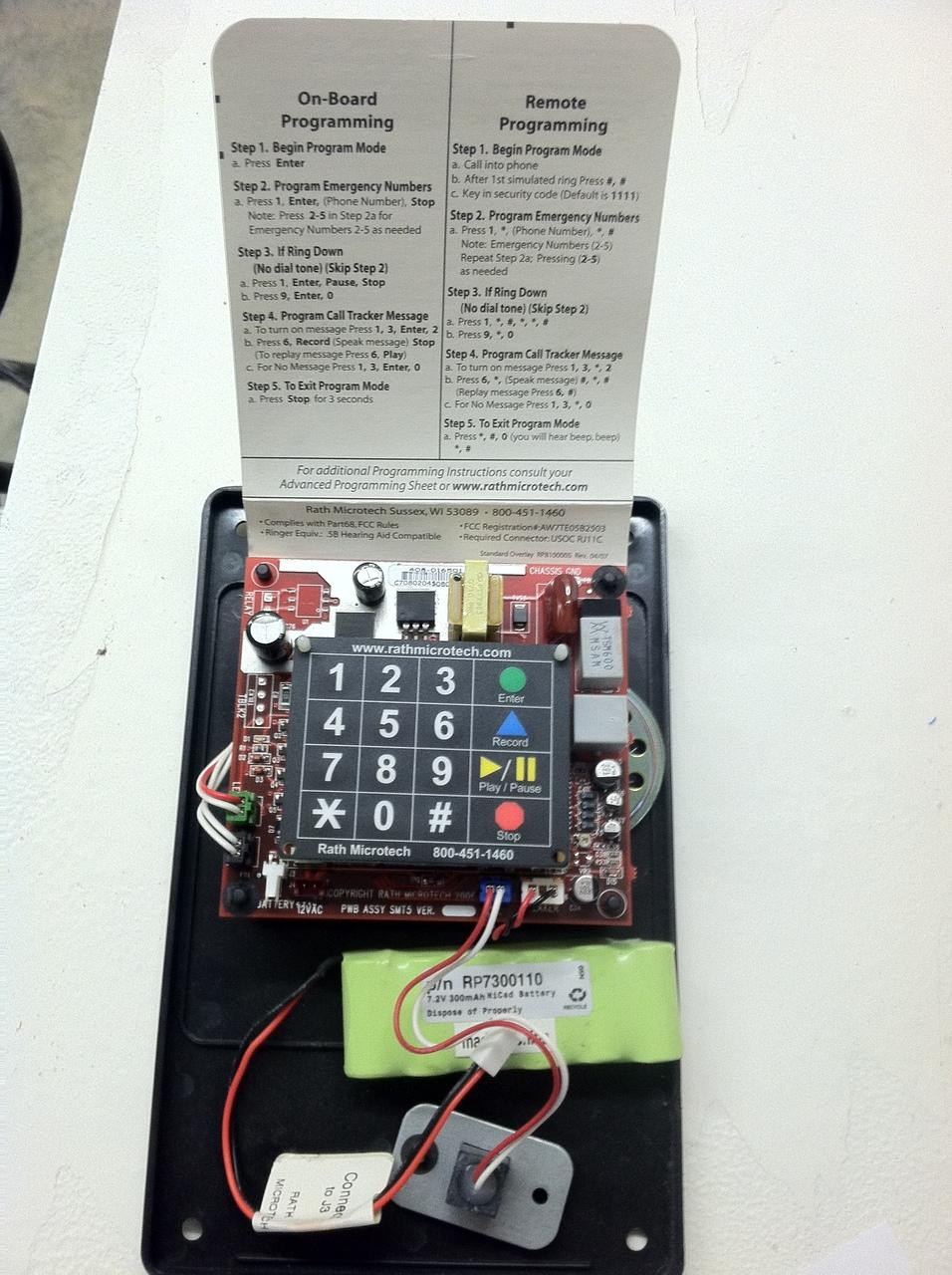

Programming Features:
- On-site or remote programming
- Programmable with up to 5 emergency numbers
- Recordable location message (18 seconds)
- Pictorial keypad
Phone Capabilities:
- Compatible with SmartRescue, Command Center, and Machine Room Rescue phones for in-building rescue coordination
- Automatic dialer (31 digit programmable memory)
- Automatic answer feature with audible ring
- Built-in consolidator feature allows you to install 10 SmartPhones on a single telephone line without any additional equipment
- External power drives built-in phone consolidator and line detection compliance
Additional Features:
- Dimensions: 7-1/4" H x 4-3/4" W x 1-7/8" D
- Style: Black, Heavy Duty ABS
- Remote or on-site diagnostic test
- Fully programmable timer feature can be set from 1 to 999 minutes and will prompt called party to extend the call
- 2vdc, 1/3 watt LED (solid light when dialing, flashes when answered)
Specifications:
- Environmental: -40°F - +150°F
- Mounting: Surface Mount
