Product Description
Choose from Operator Arm Only or the Basic Operator Kit (Includes Operator, Control Panel, Monitored Reflective Photocell, and Pre-wired 14" x 16" Enclosure).

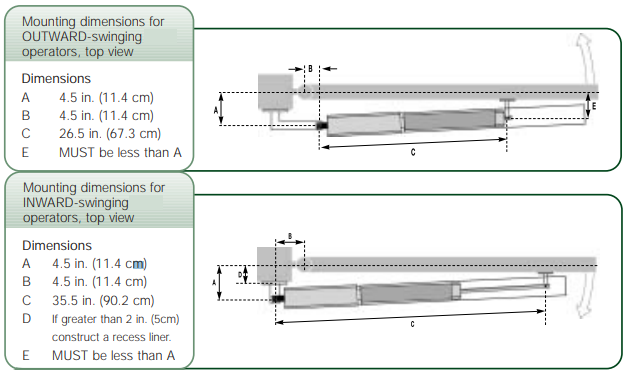

** When replacing obsolete operators, it may be necessary to drill new holes when mounting these newer operators - See dimensions below. **
- Maximum Force Output: 1550
- Duty: Medium
- Cycles Per Hour: 30
- Power Supply Volts: 115V
- Alt. Power Supply Source: BC Pro 1050 or 700i
- Battery (AC Power Failure): No
- Anti-Crushing Protection: Hydraulic Bypass + Electronic
- End Travel Declaration: Timed
- Rod-Effective Stroke (inches): 9
- Max Opening Angle: 90 degrees
- 90 Degree Opening Time: 12 seconds
- Life Expectations (cycles): 1,000,000 (10 years @ 280 cycles per day)
- Transmission: Oil Bath
Note: Operator specifications are approximate. Environmental factors can change the
performance of the operator. The duty cycle achieved by a swing gate operator
in terms of "operations per hour" is, in large part, a function of the installation.
