  • 192VA Transformer - 230V - 48V - Dual Primary/Secondary
  • 192VA Transformer - 230V - 48V - Dual Primary/Secondary

    • 192VA Transformer - 230V - 48V - Dual Primary/Secondary

    MSRP: $400.00
    $359.77
    (You save $40.23 )
    (No reviews yet) Write a Review
    SKU:
    TNS-192VA
    Condition:
    New
    Availability:
    Expect a 1 to 2 week lead time.
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    Power transformer, chassis mount, 192VA, 48V @ 4A or 24V @ 8A

    Dual Primary 117/234 VAC, 50/60 Hz.
    • Dual Secondary 24/48VAC.

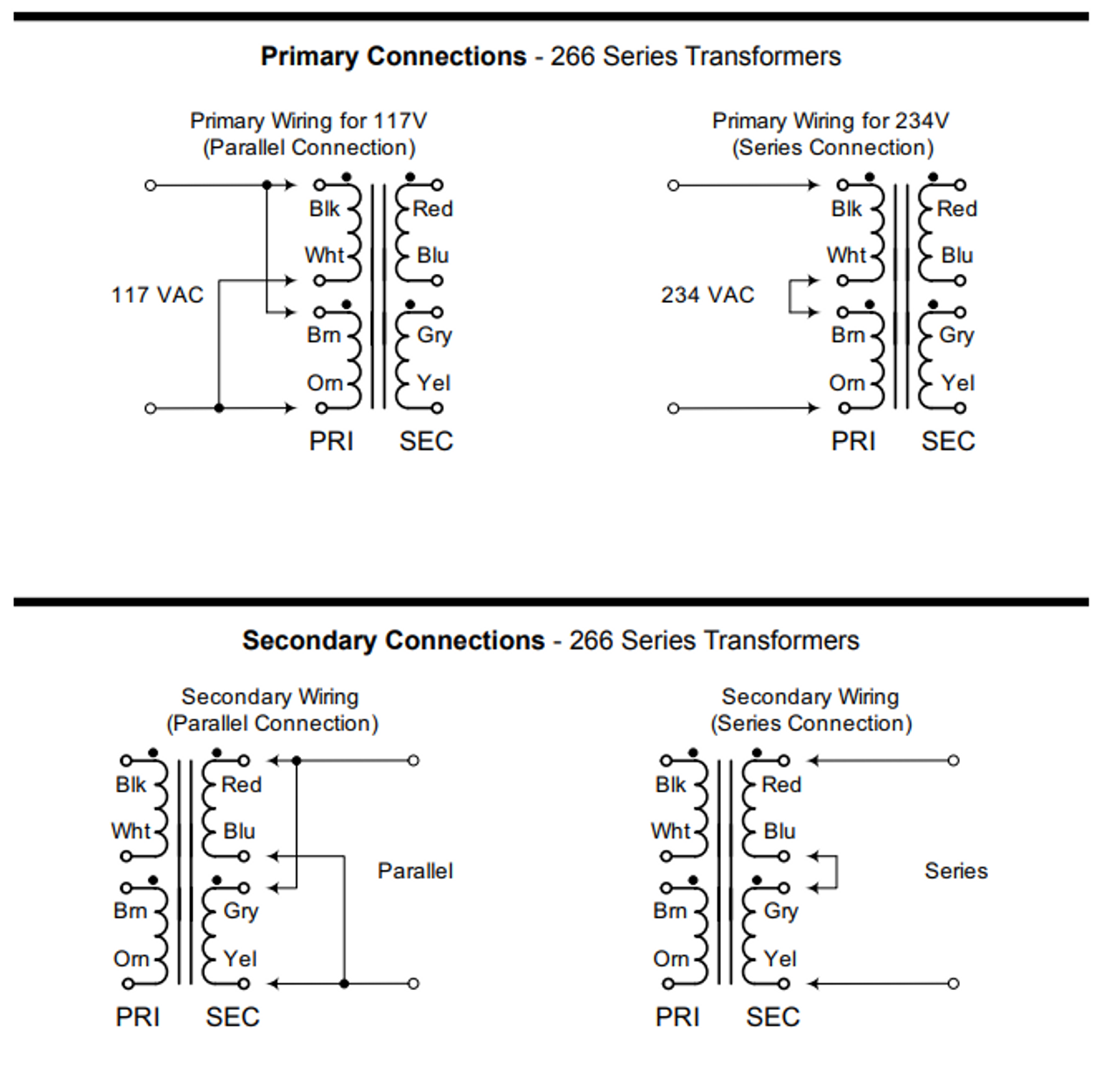

    • Secondaries can be used as a center tapped secondary, parallel connected or used
    individually.
    • Open style with minimum 6" long leads.
    • Dual bobbin design - no electrostatic shield required.
    • We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A
    (105 degree, C) design
    • Hi-Pot test of 2,000V RMS.
    • UL listed (#E50394) Type 3AH
    • CSA certified (#LR3902)
